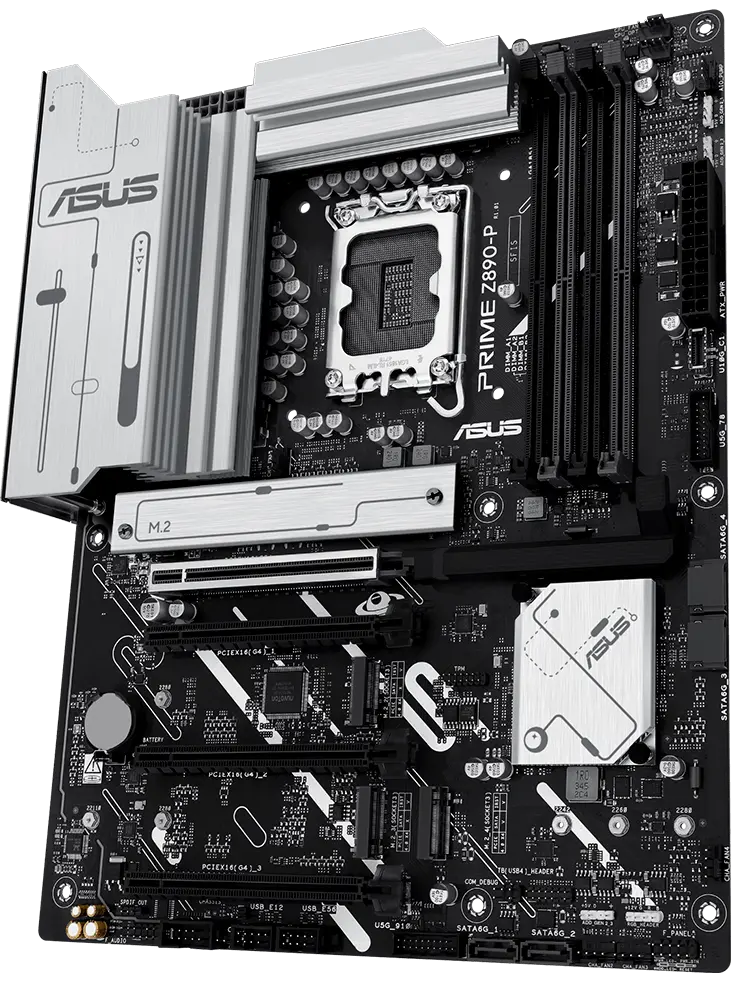

ASUS PRIME Z890 P CSM DDR5,Intel Z890,PCIe® 5.0,Intel Core Ultra 9 285K, Ultra 7 265K, Ultra 7 265F,Intel Core Ultra 5 245K, 235, 225, 225F,Intel Core Ultra 9 285
Power Design: Features a robust power design with 14+1+2+1 power stages, each rated for up to 80A, ensuring stable power delivery for high-core-count CPUs.
Cooling Solutions: Includes optimized thermals with VRM heatsinks and multi-layered PCB design for efficient heat dissipation, improving system stability and overclocking headroom.
Memory Performance: Supports ASUS Enhanced Memory Profile III (AEMP III) for unparalleled memory performance with cutting-edge DDR5 memory.
AI Features: Equipped with AI Cooling II for automated temperature control and AI Advisor for performance optimization.
Connectivity: Offers advanced connectivity options, including PCIe 5.0, USB 20Gbps (Type-C® with DP Alt mode), and multiple M.2 slots for high-speed storage.
Customization: Supports Aura Sync for RGB lighting customization and advanced tuning options via intuitive software.
| Model | ASUS PRIME Z890-P-CSM |
| Chipset | Intel Z890 |
| CPU Compatibility | Intel Core Ultra 9 285K, Ultra 7 265K, Ultra 7 265F, Ultra 5 245K, 235, 225, 225F, Ultra 9 285 |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 up to 8666+MT/s (OC), Non-ECC, Un-buffered Memory |
| Graphics | 1 x DisplayPort (max. 4K@60Hz), 1 x HDMI® port (max. 4K@60Hz), 1 x USB 20Gbps port (Type-C®) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (x4 mode), 1 x PCIe 4.0 x16 slot (x1 mode) |
| Storage | 4 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear Ports) | 1 x USB 20Gbps (Type-C® with DP Alt mode), additional USB ports |
| Special Features | ASUS Enhanced Memory Profile III (AEMP III), AI Cooling II, Advanced AI PC-ready |
