  3. Gigabyte B760M GAMING X AX Motherboard / LGA1700 / DDR5 7600(O.C.) / PCIe 4.0 / Wi-Fi 6E / 2.5GbE LAN / HDMI 2.1 / Dual M.2 / Micro ATX
Default

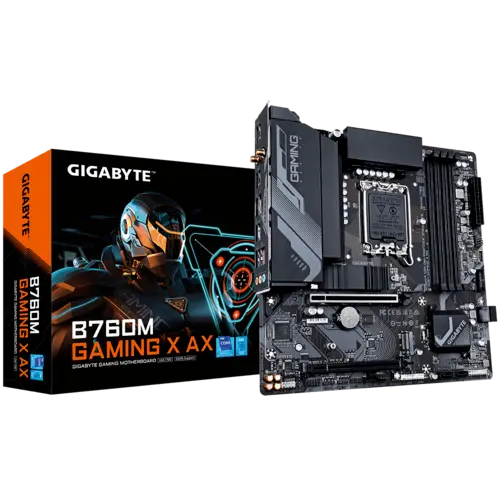

Gigabyte B760M GAMING X AX Motherboard / LGA1700 / DDR5 7600(O.C.) / PCIe 4.0 / Wi-Fi 6E / 2.5GbE LAN / HDMI 2.1 / Dual M.2 / Micro ATX

https://www.bluewavecomputers.in/web/image/product.template/4001/image_1920?unique=482154c
₹ 16,870.00 ₹ 16,870.00 Tax Included

You can buy only one unit

Offer: 0.00%

This combination does not exist.

Accessories
Feature Details
Model
B760M GAMING X AX
CPU Support Intel® 14th/13th/12th Gen CPUs (LGA1700)
Memory DDR5 7600(O.C.) max; Dual Channel; 256 GB
Graphics Support HDMI 2.1 & DisplayPort 1.2 with up to 4K resolution
Networking 2.5GbE LAN + Wi-Fi 6E + Bluetooth 5.3
Storage Dual M.2 PCIe 4.0 + 4 x SATA + RAID support
Expansion PCIe 4.0 x16 + PCIe 3.0 x4

Contact Us

Terms and Conditions
A delivery charge will apply based on the pin code.
Shipping will take 3-5 business days.   ​

Share

Share

The Socket of Future Power

Harness the full might of Intel’s 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors with LGA1700 — a socket built to unlock next-level computing.

Memory that Soars Beyond Limits

Enjoy up to 256GB of blazing-fast DDR5 memory, pushing speeds up to 7600 MT/s (O.C.)—a symphony of power, speed, and capacity in perfect dual-channel harmony.

Visual Brilliance Unleashed

Experience multi-display glory with HDMI 2.1, dual DisplayPorts, and legacy D-Sub—supporting up to 4 displays at ultra-high resolutions for creators and multitaskers alike.

Storage at Warp Speed

Dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports with RAID support deliver lightning-fast data transfer and expansive storage potential for your digital dominion.

Networking Reimagined

Realtek® 2.5GbE LAN redefines your connection speed—whether streaming, gaming, or working—ensuring stability and ultra-fast internet like never before.





Category Details
CPU Socket LGA1700; Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors
Chipset Intel® B760 Express
Memory Support DDR5 up to 7600(O.C.) MT/s; 4 x DIMM sockets; max 256 GB; Dual channel; ECC & non-ECC un-buffered DIMMs; XMP support
Graphics Output 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.2 (4096x2304@60Hz); HDCP 2.3 support
Audio Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel; S/PDIF Out
LAN Realtek® 2.5GbE LAN
Wi-Fi & Bluetooth Wi-Fi 6E (Intel AX210/AX211 or Realtek RTL8852CE depending on PCB rev.); Bluetooth 5.3
Expansion Slots 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 3.0 x4 (Chipset)
Storage Interfaces 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; Supports RAID 0/1/5/10
USB Ports 1 x USB-C 3.2 Gen 2 (internal); 5 x USB 3.2 Gen 1; 1 x USB 2.0; 8 x USB 2.0 (internal + back)
Internal Headers 1 x 24-pin ATX, 1 x 8-pin CPU, 3 x fan, RGB headers, TPM header, Thunderbolt add-in headers, USB headers, etc.
Back Panel I/O HDMI, DisplayPort, 3 x USB 3.2 Gen 1, 5 x USB 2.0, LAN, audio jacks, antenna connectors
Form Factor Micro ATX (24.4cm x 24.4cm)
Operating Systems Windows 10/11 64-bit
Software Norton Security (OEM), LAN Bandwidth Manager, GIGABYTE Control Center, Q-Flash, Q-Flash Plus
