TVS ELECTRONICS LP 46 Plus Label Printer|0.5 and 1Inch Ribbon Core |Multiple Interface Options of USB,Serial and ethernet|Noiseless|Resolution of 203 dpi

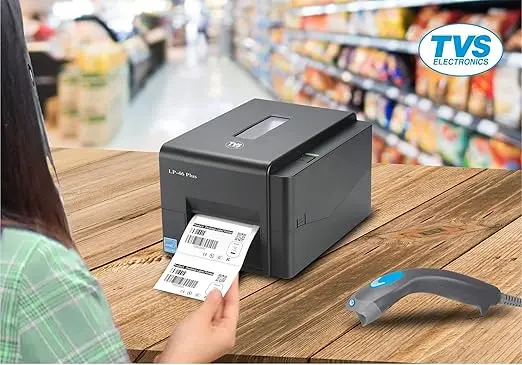

LP 46 Plus Desktop Label Printers combine performance with reliability and offers High-Resolution labels. These are appropriate for Manufacturing and Warehousing, Healthcare, Small offices, and Logistics.
ADVANTAGES
High Memory capacity of 128 MB Flash and 64 MB SDRAM
Supports multiple interfaces
Supports both 0.5″ and 1″ Ribbon core
FEATURES
| Resolution | 8 dots/mm (203 DPI) |
| Printing Method | Thermal Line Printing – Direct, Thermal & Thermal Transfer |
| Max. Print Width | 108 mm (4.25“) |
| Max. Print Speed | 152.4 mm (6”/second) |
| Max. Print Length | 2,794 mm (110“) |
| Physical Dimensions | 204 mm (W) x 164 mm (H) x 280 mm (D) |
| Weight | 2.4 kg (5.29 lbs) |
| Label Roll Capacity | 127 mm (5“) OD |
| Ribbon | 300 m long, Max. OD 67 mm, 1” core, ink coated outside |
| Ribbon Width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
| Processor | 32-bit RISC CPU |
| Memory | 128 MB Flash memory, 64 MB SDRAM |

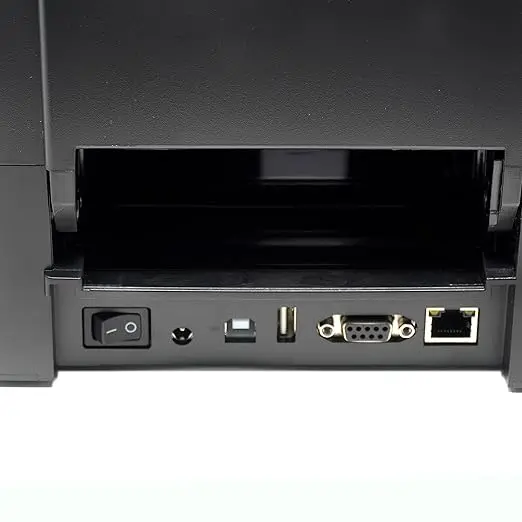

| Interface | USB, Serial, and Ethernet |
| Power | Input: AC 100–240V, 2.5A, 50–60Hz; Output: DC 24V, 2.5A, 60W |
| Sensors | Transmissive gap sensor, Black mark reflective sensor (position adjustable) |
| 1D Barcode | Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2–5 digits addon, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China Post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS |
| 2D Barcode | GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 |
| Printer Language | TSPLEZD Compatible with EPL, ZPL, ZPL II, DPL |
| Media Type | Continuous, die-cut, black mark, fanfold, notched (outside wound) |
| Media Width | 20 ~ 112 mm (0.8“ ~ 4.4”) |
| Media Thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) |
| Media Core Diameter | 25.4 ~ 38 mm (1” ~ 1.5”) |
| Label Length | 5 ~ 25,400 mm |
| Environment Condition (Operation) | 5°C ~ 40°C, 25% ~ 85% non-condensing |
| Environment Condition (Storage) | -40°C ~ 60°C, 10% ~ 90% non-condensing |
