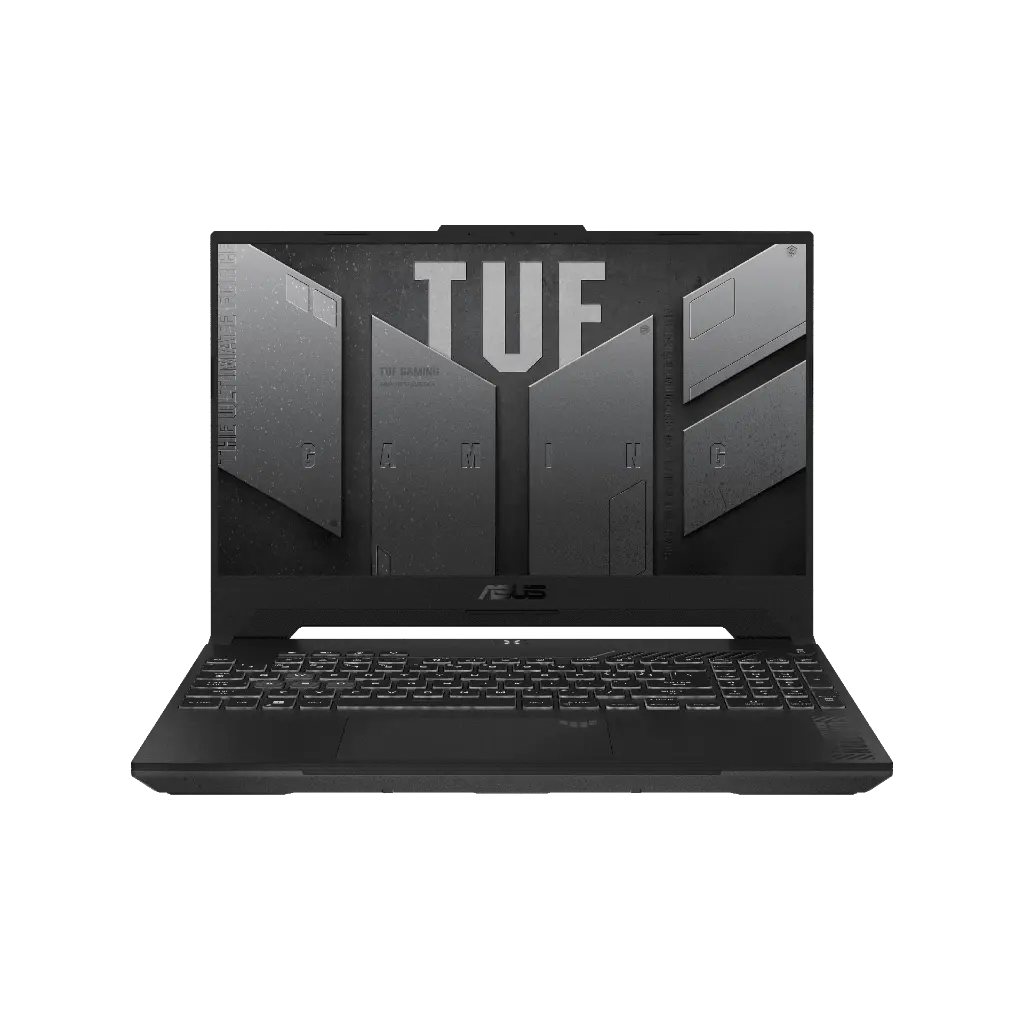

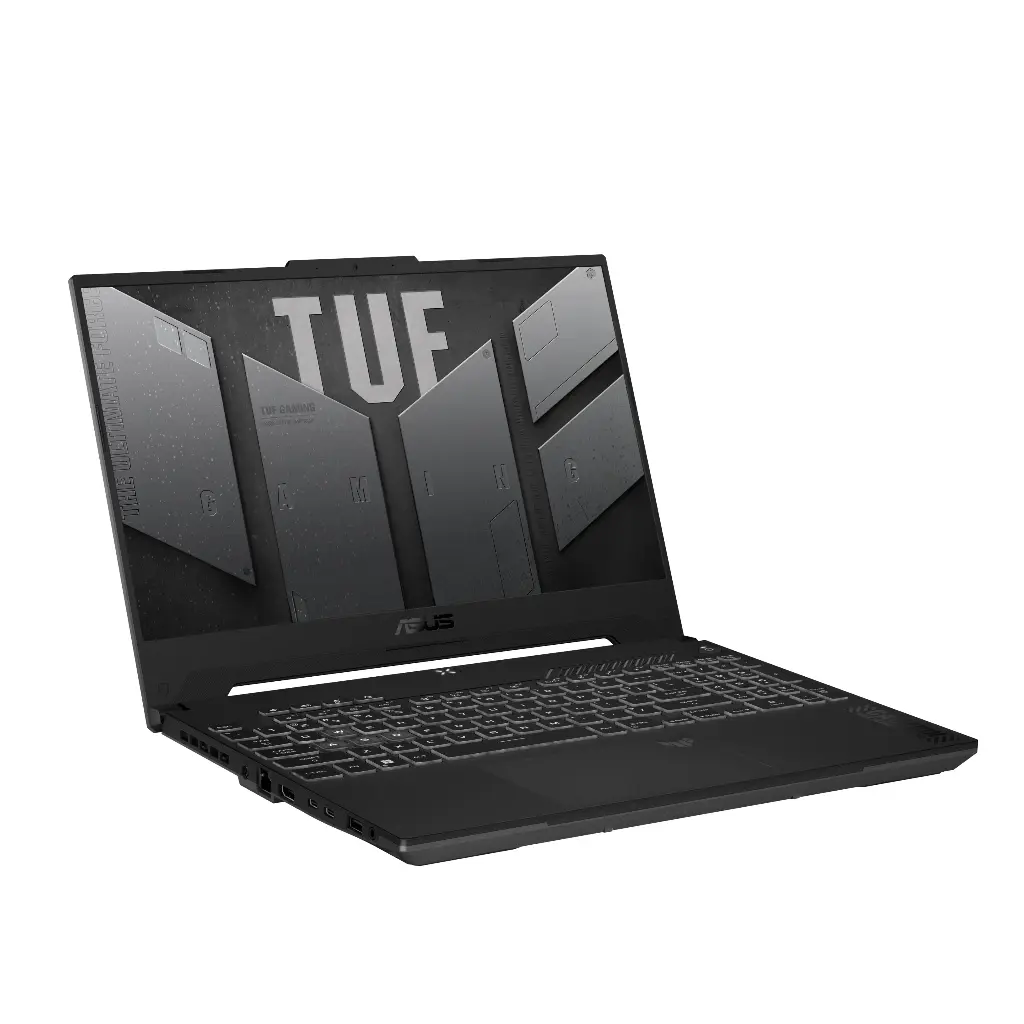

ASUS TUF Gaming A15 13th Gen Intel® Core™ i7-13620H,8 GB RTX 4060 GPU (16GB DDR5 ,512GB SSD ,15.6" FHD Display,Mecha Gray,2.20Kg,Win 11)FX507VV-LP487WS

Product Overview

The 13th Generation Intel® Core™ i7 Processors, codenamed Raptor Lake, are designed for the mobile vertical segment. The specific processor, i7-13620H, is built using the Intel 7 lithography, ensuring power efficiency and high performance.

CPU Specifications

This processor features a total of 10 cores, divided into 6 performance cores and 4 efficient cores, supporting 16 threads in total. The Max Turbo Frequency is 4.90 GHz, enabled by Intel® Turbo Boost Max Technology 3.0, which also applies to the performance cores. The efficient cores reach up to 3.60 GHz. It includes a 24 MB Intel® Smart Cache for enhanced performance. The Processor Base Power is 45 W, with a Maximum Turbo Power of 115 W and a Minimum Assured Power of 35 W. Additionally, it supports Intel® Deep Learning Boost for optimized AI workloads.

Marketing and Availability

The processor has a Launched status and was introduced in Q1'23. It does not have embedded options available. More details are available in the datasheet

Memory Specifications

The processor supports a maximum memory size of 96 GB, depending on the memory type. It is compatible with various memory types, including DDR5 5200 MT/s, DDR4 3200 MT/s, LPDDR5/x 5200 MT/s, and LPDDR4x 4267 MT/s. With support for 2 memory channels, it provides efficient memory bandwidth. ECC memory is not supported.

GPU Specifications

Equipped with Intel® UHD Graphics for 13th Gen Intel® Processors, the GPU operates at a maximum dynamic frequency of 1.50 GHz. It supports a variety of outputs, including eDP 1.4b, DP 1.4a, and HDMI 2.1. The Execution Units count is 64, and it supports a maximum resolution of 4096 x 2304 @ 60Hz for HDMI, 7680 x 4320 @ 60Hz for DisplayPort, and 4096 x 2304 @ 120Hz for eDP (Integrated Flat Panel). Additionally, it supports DirectX 12.1, OpenGL 4.6, and OpenCL 3.0, with Intel® Quick Sync Video for efficient video encoding. It can support up to 4 displays simultaneously, with a device ID of 0xA7A8.

Package Specifications

It is compatible with the FCBGA1744 socket and supports up to 1 CPU configuration. The TJUNCTION temperature is 100°C, with a maximum operating temperature of 100°C. The package size is 50 mm x 25 mm.
