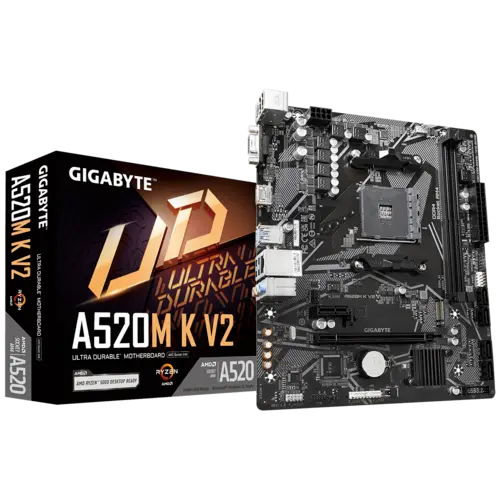

GIGABYTE ATX A520M K V2 Motherboard with GBe LAN with Bandwidth Management, DDR4, Pcie 3.0 X4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design
NVMe PCIe Gen 3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards is a specialized design feature aimed at maintaining high audio quality. It achieves this by physically isolating sensitive analog audio components on the motherboard from potential noise interference at the PCB (Printed Circuit Board) level. This separation helps to minimize distortion and ensures clearer, more reliable audio output, especially in demanding applications like gaming or multimedia production.
Features
| Specification | Details |
|---|---|
| CPU | AMD Socket AM4, supports AMD Ryzen™ 5000/4000 G-Series, Ryzen™ 5000/3000 and Ryzen™ 3000 G-Series Processors |
| Chipset | AMD A520 |
| Memory | - 2 x DDR4 DIMM sockets (Up to 64 GB) |
| - Supports DDR4 5100(O.C.) to 2133 MHz | |
| - Dual-channel memory architecture | |
| - Supports ECC and non-ECC Un-buffered DIMM memory modules | |
| - Extreme Memory Profile (XMP) support | |
| Onboard Graphics | Integrated Graphics Processor: |
| - 1 x D-Sub port (1920x1200@60 Hz) | |
| - 1 x HDMI port (4096x2160@60 Hz) | |
| * HDMI 2.1, HDCP 2.3, HDR supported | |
| - Max shared memory: 16 GB | |
| Audio | Realtek® Audio CODEC, High Definition Audio |
| - 2/4/5.1/7.1-channel support | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | - 1 x PCI Express x16 (PCIe 3.0, x16) (CPU) |
| - 1 x PCI Express x1 (PCIe 3.0, x1) (Chipset) | |
| Storage Interface | - 1 x M.2 connector (CPU) |
| - 4 x SATA 6Gb/s connectors (Chipset) | |
| - RAID 0, RAID 1, and RAID 10 support | |
| USB | - 4 x USB 3.2 Gen 1 ports (CPU, Back) |
| - 2 x USB 3.2 Gen 1 (Internal Header, Chipset) | |
| - 6 x USB 2.0/1.1 ports (2 Back, 4 Internal) | |
| Internal I/O Connectors | - 24-pin ATX main power connector |
| - 8-pin ATX 12V power connector | |
| - 1 x CPU fan header | |
| - 1 x system fan header | |
| - 1 x M.2 Socket 3 connector | |
| - 4 x SATA 6Gb/s connectors | |
| - 1 x front panel header | |
| - 1 x Trusted Platform Module header | |
| - Others as listed in details | |
| Back Panel Connectors | - 1 x PS/2 keyboard/mouse port |
| - 1 x D-Sub, 1 x HDMI port | |
| - 4 x USB 3.2 Gen 1 ports | |
| - 2 x USB 2.0/1.1 ports | |
| - 1 x RJ-45 port | |
| - 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, and fan speed detection |
| Fan fail warning and speed control | |
| BIOS | 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | - Support for APP Center applications |
| - @BIOS, EasyTune, Smart Backup | |
| - System Information Viewer, Q-Flash | |
| - Xpress Install | |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth software |
| Operating System | Windows 11 and Windows 10 (64-bit) |
| Form Factor | Micro ATX (23.3 cm x 19.8 cm) |
