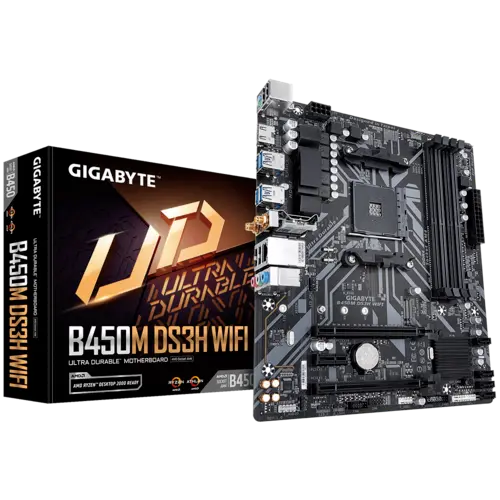

Gigabyte B450M DS3H WiFi MicroATX Motherboard Socket AM4 DDR4

https://www.bluewavecomputers.in/web/image/product.template/3415/image_1920?unique=6070bc2
₹ 7,800.00 ₹ 7,800.00 Tax Included

You can buy only one unit

Offer: 0.00%

This combination does not exist.

Accessories
Feature Description
Model
B450M DS3H WIFI
CPU Support Compatible with Ryzen 5000 to 1st Gen and Athlon Vega CPUs
Memory Capacity Up to 128 GB DDR4, XMP and ECC support
Wireless & Bluetooth Dual Band Wi-Fi (802.11ac), Bluetooth 5.0
Storage Options 1x M.2 + 4x SATA 6Gb/s, supports RAID 0/1/10
Expansion Support PCIe 3.0 x16, additional PCIe 2.0 slots
Audio Capabilities Realtek® 7.1 HD Audio with S/PDIF Out

Contact Us

Terms and Conditions
A delivery charge will apply based on the pin code.
Shipping will take 3-5 business days.   ​

Share

Share

Brain of the Beast – Power-Packed CPU Compatibility

This motherboard houses the soul of Ryzen—offering full support for AMD's 5000 series down to the earliest Ryzen and Athlon chips, ensuring performance scales to your ambition.

Threads of Speed – Memory Mastery

Four DDR4 slots support a staggering 128 GB of RAM at speeds up to 3600 MHz (OC), with dual-channel architecture and XMP profiles, ready to weave multitasking dreams.

Wings of Connectivity – Wi-Fi and Bluetooth Built-In

Fly without wires thanks to integrated Realtek® Wi-Fi 802.11ac and Bluetooth 5.0, bringing dual-band connectivity and freedom to stream, game, or work effortlessly.

Depths of Storage – M.2 & RAID Ready

With a flexible M.2 slot (supporting both SATA & PCIe SSDs) and four SATA ports with RAID capabilities, your storage is fast, reliable, and future-ready.

Echoes of Clarity – Immersive Audio Experience

Feel every explosion and whisper in stunning clarity with Realtek® 7.1-channel high-definition audio and support for S/PDIF Out—your soundscape elevated.


Component Details
CPU Support AMD AM4 Socket: Ryzen 5000/5000G/3rd/2nd/1st Gen Ryzen, Athlon with Radeon Vega Graphics
Chipset AMD B450
Memory 4x DDR4 DIMM slots (up to 128 GB), dual-channel, up to DDR4 3600(O.C.), ECC & non-ECC un-buffered DIMMs, XMP support
Integrated Graphics 1x HDMI (up to 4096x2160@60Hz), HDMI 2.0, HDCP 2.2, Max 16 GB shared memory (actual support depends on CPU)
Audio Realtek® Audio CODEC, 7.1-channel support, S/PDIF Out
LAN Realtek® GbE LAN (1 Gbps)
Wireless Realtek® RTL8821CE Wi-Fi (802.11a/b/g/n/ac Dual Band), Bluetooth 5.0
Expansion Slots 1x PCIe x16 (3.0), 1x PCIe x16 @x1, 1x PCIe x1 (2.0)
Storage Interfaces 1x M.2 (2242/2260/2280/22110 SATA & PCIe x4/x2), 4x SATA 6Gb/s, RAID 0/1/10 support
USB Ports 4x USB 3.1 Gen 1 (rear), 2x USB 3.1 Gen 1 (internal), 4x USB 2.0 (rear), 2x USB 2.0 (internal)
Internal I/O 24-pin ATX, 8-pin ATX 12V, fan headers, audio headers, LED headers, TPM, USB headers, serial, Clear CMOS
Back Panel I/O HDMI, 4x USB 3.1 Gen 1, 4x USB 2.0, RJ-45, audio jacks, PS/2, 2x antenna connectors
BIOS AMI UEFI BIOS, 128 Mbit Flash, Q-Flash
Software Norton OEM, cFosSpeed, GIGABYTE App Center (EasyTune, RGB Fusion, Smart Backup, etc.)
OS Support Windows 10 64-bit, Windows 7 64-bit (with Pinnacle/Summit Ridge CPUs only)
Form Factor Micro ATX (24.4cm x 21.5cm)
