  3. GIGABYTE B560M DS3H V2 (Lga 1200/ Intel/ B560/ Micro-Atx/Dual M.2/ Pcie 4.0/ Usb 3.2 Gen1/ Gbe Lan/Motherboard), ddr_4
Default

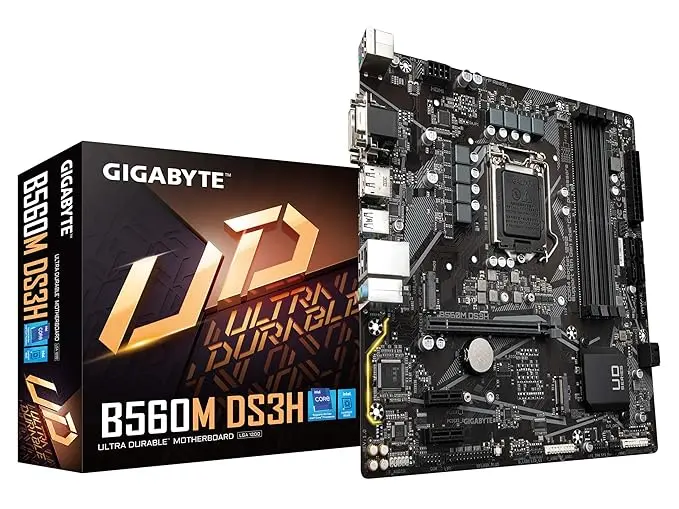

GIGABYTE B560M DS3H V2 (Lga 1200/ Intel/ B560/ Micro-Atx/Dual M.2/ Pcie 4.0/ Usb 3.2 Gen1/ Gbe Lan/Motherboard), ddr_4

https://www.bluewavecomputers.in/web/image/product.template/3401/image_1920?unique=c406de2

₹ 13,036.00 13036.0 INR ₹ 13,036.00 Tax Included

₹ 13,036.00 Tax Included

You can buy only one unit

Offer: 0.00%

This combination does not exist.

Accessories
Batteries
NA
Memory Storage Capacity
Up to 128 GB (4 x DDR4 DIMM slots, 32 GB single DIMM capacity).
Ram Memory Technology
DDR4 memory modules with speeds up to 5333 MHz (OC)
Processor Socket
LGA1200
Compatible Processor Types
Supports Intel® Core™ 11th and 10th Generation processors, including Intel® Core™, Pentium® Gold, and Celeron® processors
Graphics Card Interface
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset Type
Intel® B560 Express Chipset
Key features
Supports 11th and 10th Gen Intel®  Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
GbE LAN with Bandwidth Management
USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Contact Us

Terms and Conditions
A delivery charge will apply based on the pin code.
Shipping will take 3-5 business days.   ​

Share

Share

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
All-solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
