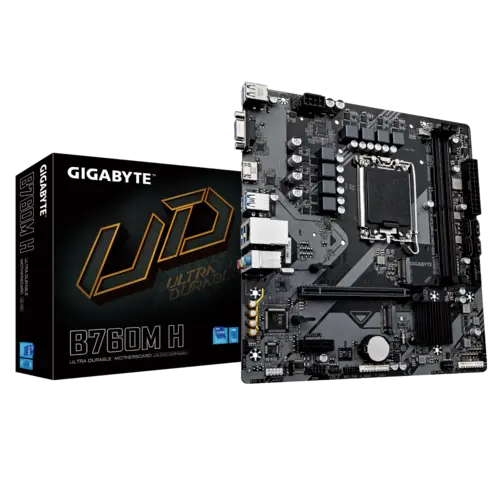

GIGABYTE Micro ATX B760M H DDR5 Motherboard, Intel 14Th/13th/12Th Gen CPUs, 6+1+1 Phase Digital Vrm, DDR5 Xmp, 2 Pcie 4.0 M.2 Slots, GBe LAN, HDMI, D-Sub

https://www.bluewavecomputers.in/web/image/product.template/3384/image_1920?unique=096770b
₹ 9,270.00 ₹ 9,270.00 Tax Included

You can buy only one unit

Offer: 0.00%

This combination does not exist.

Accessories
Feature Details
Model
B760M H
CPU Compatibility Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron CPUs
Memory Support DDR5 up to 8000(O.C.) MT/s, 128GB max, dual channel, ECC/Non-ECC support
Storage Dual PCIe 4.0 M.2 slots, 4x SATA, RAID 0/1/5/10
Graphics HDMI 2.1 and D-Sub output, up to 4K @ 60Hz
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Connectivity Realtek 1GbE LAN, 6x USB 3.2 Gen 1, 6x USB 2.0

Contact Us

Terms and Conditions
A delivery charge will apply based on the pin code.
Shipping will take 3-5 business days.   ​

Share

Share

Power to the Core

Unleash performance with support for Intel's latest 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket, ready to take on intensive computing tasks.

Lightning-Speed Memory Magic

Harness the cutting-edge of RAM technology with support for DDR5 up to a blazing 8000MT/s (O.C.), dual-channel architecture, and up to 128GB system memory capacity—your workflows just got turbocharged.

Storage for the Speed-Hungry

Boot fast and load faster—thanks to dual M.2 PCIe 4.0 x4 slots and four SATA ports with full RAID support, you get both blazing NVMe speeds and reliable SATA storage versatility.

A Canvas in 4K

Experience integrated Intel HD graphics with both HDMI 2.1 and D-Sub support, offering crystal-clear resolutions up to 4096x2160 @ 60Hz—ideal for workstations or home entertainment hubs.

Stay Connected, Stay Fast

Equipped with Realtek’s 1GbE LAN and a rich set of USB options—6x USB 3.2 Gen 1 and 6x USB 2.0—ensuring rapid data access, seamless downloads, and a responsive user experience.






Category Details
CPU LGA1700 socket; supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors
Chipset Intel B760 Express Chipset
Memory 2x DDR5 DIMM sockets, up to 128GB; DDR5 8000(O.C.) to 4000 MT/s supported; Dual channel; ECC (non-ECC mode); XMP support
Graphics Integrated Intel HD Graphics; 1x D-Sub (1920x1200@60Hz), 1x HDMI (4096x2160@60Hz); HDMI 2.1, HDCP 2.3
Audio Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out supported
LAN Realtek GbE LAN chip (1 Gbps)
Expansion Slots 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset)
Storage 2x M.2 (PCIe 4.0 x4/x2); 4x SATA 6Gb/s; RAID 0/1/5/10 support
USB Ports 6x USB 3.2 Gen 1 (4 rear, 2 internal), 6x USB 2.0 (2 rear, 4 internal)
Internal I/O 1x 24-pin ATX, 1x 8-pin ATX 12V, fan headers, RGB LED header, front panel/audio headers, TPM header, USB headers, serial port, Clear CMOS jumper
Back Panel I/O 2x USB 2.0, 4x USB 3.2 Gen 1, D-Sub, HDMI, RJ-45, 3x audio jacks
BIOS 128 Mbit flash, AMI UEFI BIOS, ACPI 5.0
Software GIGABYTE Control Center, Norton Security (OEM), LAN management software
OS Support Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX (23.0 x 21.5 cm)
