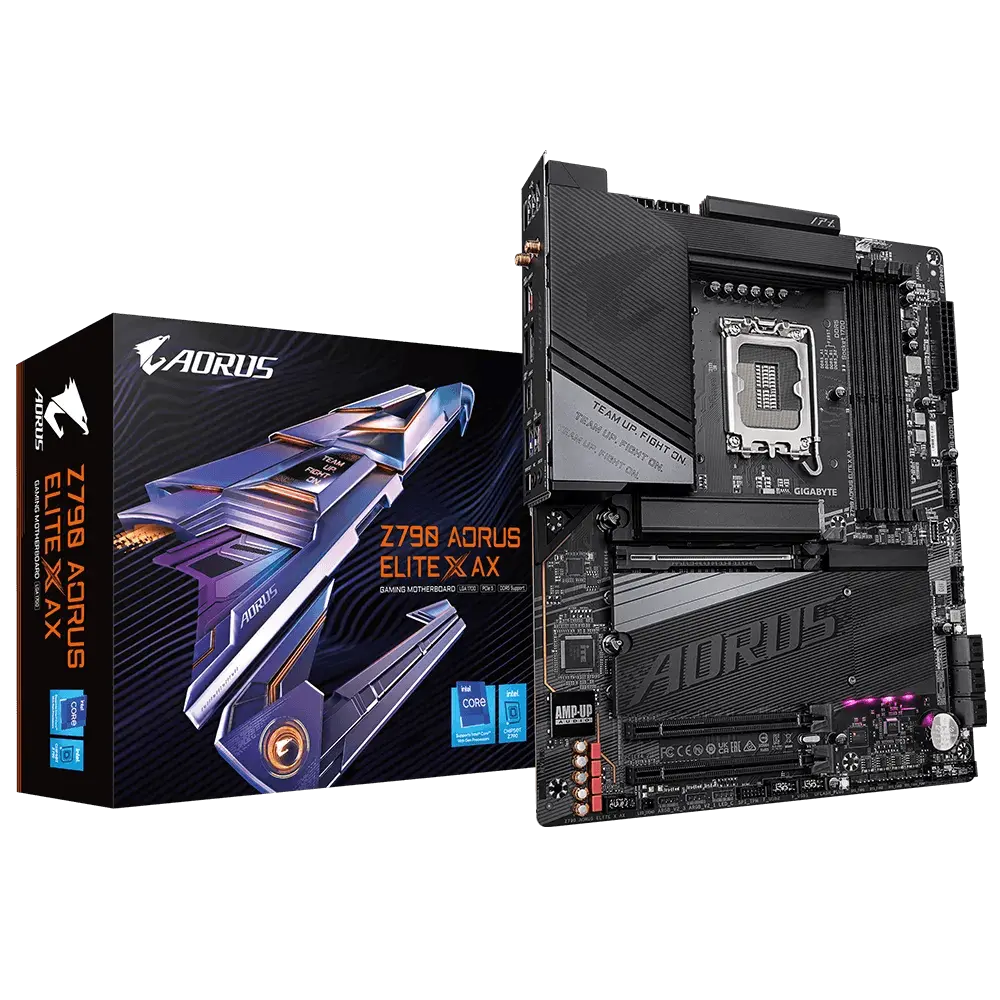

GIGABYTE Z790 AORUS ELITE X AX DDR5 MOTHERBOARD

GIGABYTE Z790 AORUS ELITE X AX DDR5 MOTHERBOARD

https://www.bluewavecomputers.in/web/image/product.template/3358/image_1920?unique=7847b33

₹ 31,645.14 31645.14 INR ₹ 31,645.14 Tax Included

₹ 31,645.14 Tax Included

You can buy only one unit

Offer: 0.00%

This combination does not exist.

Accessories
Batteries
NA
Memory Storage Capacity
Up to 256 GB (64 GB single DIMM capacity) of system memory
Ram Memory Technology
DDR5, supporting up to 8266 MT/s (O.C.)
Processor Socket
LGA1700
Compatible Processor Types
Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
Graphics Card Interface
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16.
Chipset Type
Intel® Z790 Express Chipset
Key features
Supports Intel® Core™ 14th and 13th processors
Digital twin 16+1+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Precision Audio：ALC1220 & Audiophile Grade Capacitors

Contact Us

Terms and Conditions
A delivery charge will apply based on the pin code.
Shipping will take 3-5 business days.   ​

Share

Share

                Features
CPULGA1700 socket; 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, Celeron® processors; L3 cache varies with CPU
ChipsetIntel® Z790 Express Chipset
MemoryDDR5, up to 8266 MT/s (O.C); 4 DIMM slots, max 256 GB; ECC & non-ECC un-buffered DIMM support; Dual-channel memory architecture
Onboard GraphicsIntegrated Intel® HD Graphics; 1 HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)
AudioRealtek® ALC1220-VB CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out
LANIntel® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
WirelessRealtek® Wi-Fi 6E RTL8852CE (PCB 1.0), Intel® Wi-Fi 6E AX211 (PCB 1.1); Bluetooth 5.3
Expansion Slots1 PCIe 5.0 x16 slot (CPU), 2 PCIe 4.0 x4 slots (Chipset)
Storage1 CPU M.2 PCIe 4.0 x4, 3 Chipset M.2 (2 PCIe 4.0 x4; 1 PCIe/SATA); 6 SATA 6Gb/s; RAID 0, 1, 5, 10
USB PortsUSB-C 3.2 Gen 2x2 (rear); USB-C 3.2 Gen 2 (internal); USB 3.2 Gen 2 (2 rear); USB 3.2 Gen 1 (5 total); USB 2.0 (8 total)
Internal I/OIncludes 24-pin ATX, 2x 8-pin ATX 12V, RGB headers, M.2 sockets, SATA connectors, TPM header, reset/CMOS buttons
Back PanelUSB-C 3.2 Gen 2x2, USB 3.2 Gen 2 (2), USB 3.2 Gen 1 (3), USB 2.0 (4), SMA antenna connectors, HDMI, DisplayPort, RJ-45, S/PDIF Out, audio jacks
MonitoringVoltage/temperature/fan speed monitoring, water cooling flow rate, fan fail warning/control
BIOS256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, ACPI 5.0
Unique FeaturesGIGABYTE Control Center (GCC), Q-Flash/Plus, Smart Backup
Operating SystemWindows 11 64-bit, Windows 10 64-bit
Form FactorATX; 30.5 cm x 24.4 cm
