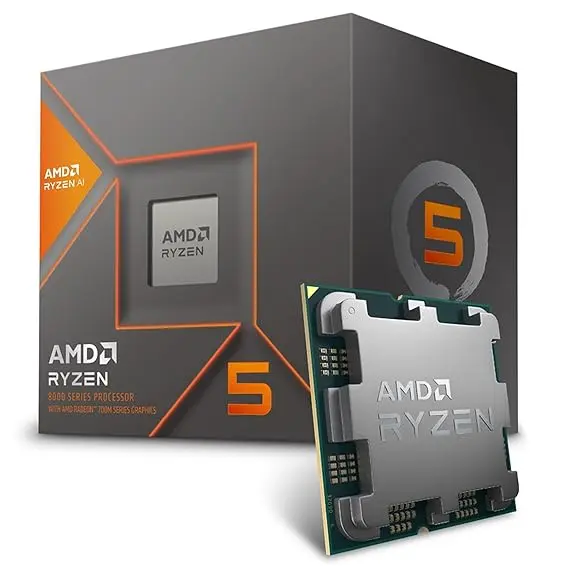

AMD Ryzen 5 8600G Desktop Processor 6 cores 12 Threads 22 MB Cache 4.3 GHz Upto 5 GHz AM5 Socket (100-100001237BOX)
Cores and Threads: 6 cores and 12 threads for efficient multitasking and performance.
Base and Boost Clock Speeds: Base clock of 4.3 GHz and boost clock up to 5 GHz for enhanced processing power.
Cache: 22 MB total cache (L2 + L3) for faster data access and improved performance.
Socket Compatibility: AM5 socket, designed for the latest motherboards.
Architecture: Built on AMD's advanced Zen 4 architecture for improved efficiency and performance.
TDP (Thermal Design Power): 65W, ensuring energy-efficient operation.
Memory Support: Supports DDR5 memory with speeds up to 5200 MT/s and dual-channel memory architecture.
PCIe Support: PCIe 4.0 support for reliable data transfer and connectivity.
Graphics: Integrated Radeon Graphics for basic graphical tasks and light gaming.
Thermal Solution: Includes an efficient cooling solution for optimal thermal performance.
Warranty: Comes with a 3-year limited warranty.
Features
| Name | AMD Ryzen™ 5 8600G |
| Family | Ryzen |
| Series | Ryzen 8000 Series |
| Form Factor | Desktops |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Phoenix |
| Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 4.3 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 1/31/2024 |
| OS Support | Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | Native USB 4 (40Gbps): 2, Native USB 3.2 Gen 2 (10Gbps): 2, Native USB 2.0 (480Mbps): 1 |
| PCIe Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) | 20, 16 |
| NVMe Support | Boot, RAID0, RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| Graphics Model | AMD Radeon™ 760M |
| Graphics Core Count | 8 |
| Graphics Frequency | 2800 MHz |
| DirectX® Version | 12 |
| DisplayPort™ Version | 2.1 |
| DisplayPort Extensions | Adaptive-Sync, HDR Metadata, UHBR10 |
| DisplayPort Max Refresh Rates (SDR) | 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz |
| DisplayPort Max Refresh Rates (HDR) | Same as SDR |
| HDMI® Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| AMD FreeSync™ | Yes |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, and more |
| Max Video Decode Bandwidth | 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, and more |
| AMD SmartAccess Memory | Available |
| AI Engine Capabilities | AMD Ryzen™ AI |
| AI Performance | Up to 16 TOPS |
| Product ID Boxed | 100-100001237BOX |
| Product ID Tray | 100-000001237 |
| Product ID MPK | 100-100001237MPK |
| Security Features |
