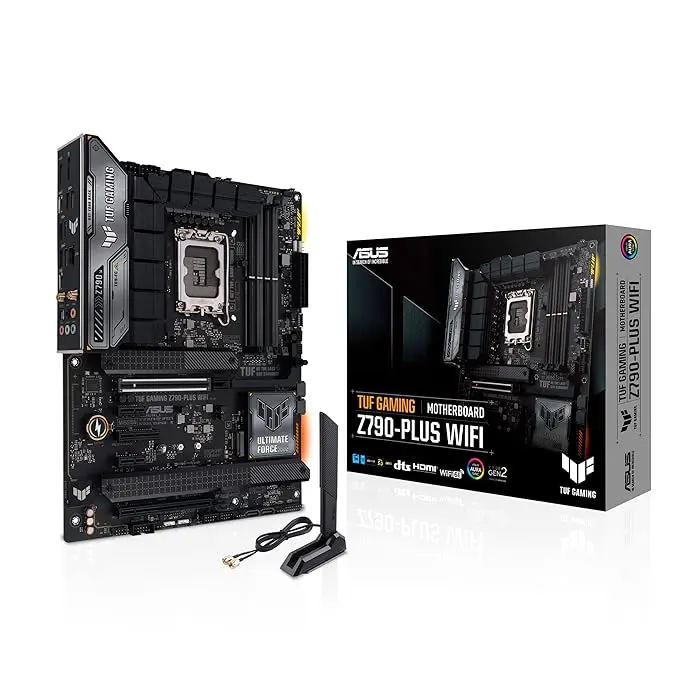

ASUS TUF Gaming Z790-Plus WiFi LGA 1700(Intel®12th&13th Gen) ATX Gaming Motherboard(PCIe 5.0,DDR5,4xM.2 Slots,16+1 DrMOS,WiFi 6,2.5Gb LAN,Front USB 3.2 Gen 2 Type-C®,Thunderbolt 4(USB4),Aura RGB)
TUF GAMING
Z790-PLUS WIFI
TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Features
| Model | TUF GAMING Z790-PLUS WIFI |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, Celeron® Processors |
| Chipset | Intel® Z790 Chipset |
| Memory | 4x DIMM, Max. 192GB DDR5 (Supports XMP, OptiMem II, speeds up to 7200 MHz OC) |
| Graphics | 1x DisplayPort (4K@60Hz), 1x HDMI® (4K@60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| Storage | 4x M.2 slots (PCIe 4.0 & SATA), 4x SATA 6Gb/s |
| Ethernet | Intel® 2.5Gb Ethernet, TUF LANGuard |
| Wireless/BT | Wi-Fi 6E (2x2, 802.11 ax), Bluetooth v5.3 |
| USB Ports | Rear: 1x USB 3.2 Gen 2x2 (Type-C®), 3x USB 3.2 Gen 2 (2x Type-A + 1x Type-C®), 4x USB 3.2 Gen 1 (Type-A) |
| Front: USB 3.2 Gen 2/1 and USB 2.0 headers | |
| Audio | Realtek S1220A 7.1 Surround Sound HD Audio CODEC (120 dB SNR playback, 113 dB SNR recording) |
| Back Panel I/O Ports | USB 3.2 Gen 2x2/2/1, DisplayPort, HDMI®, Optical S/PDIF, Audio jacks, Intel® 2.5Gb Ethernet port, Wi-Fi module |
| Special Features | TUF Protection, ASUS Q-Design, AURA RGB headers, Thermal & SafeSlot solutions, Pre-mounted I/O shield |
| Software | Armoury Crate, AI Suite 3, DTS Audio Processing, Norton 360 (Trial), WinRAR |
| BIOS | 192 Mb Flash ROM (128+64), UEFI AMI BIOS |
| OS | Windows® 11/10 64-bit |
| Accessories | 2x SATA cables, M.2 screw & rubber packages, ASUS Wi-Fi antenna, TUF Gaming sticker, TUF Certification card |
| Form Factor | ATX, 12 x 9.6 inches (30.5 x 24.4 cm) |
